Single Traffic Guardrail

Industrial and commercial assets often face vehicle impacts. These minor-seeming, low-energy hits can badly damage facilities and equipment, causing high costs. The Single Traffic Guardrail is the solution. Built for low-height impacts, it absorbs force to reduce damage. It also guides vehicles. When installed right, it shows the way and stops vehicles from entering protected areas, preventing impacts. In warehouses, factories, or logistics hubs, the single traffic guardrail keeps your assets safe for more efficient operations.

Quick disassembly
Flexible assembly
Convenient maintenance

Description

Aotons Single Traffic Guardrail Designed to protect various industrial places, can reliable protection for strategic, vulnerable locations such as storage racks and machinery, electric boxes, conveyors, walls, corners, and building facades. Strong and durable, the yellow color is highly visible to the driver’s attention to safe driving.

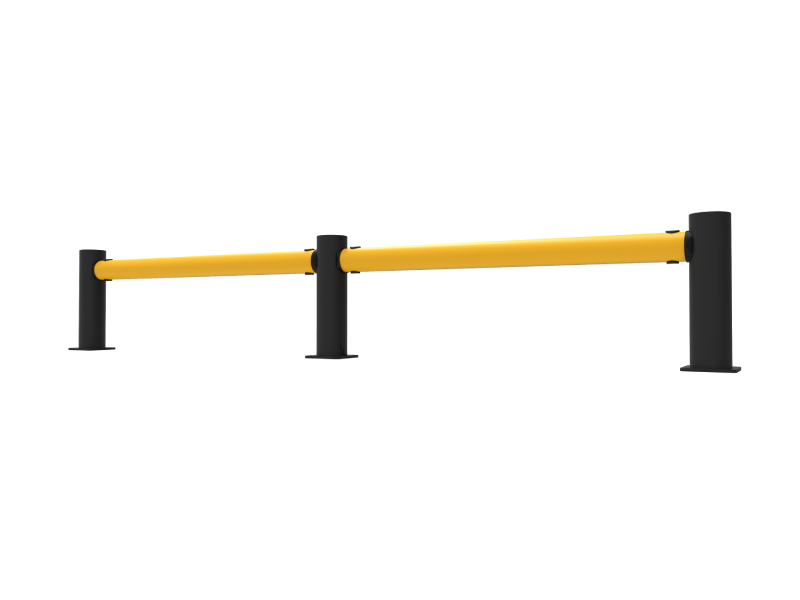

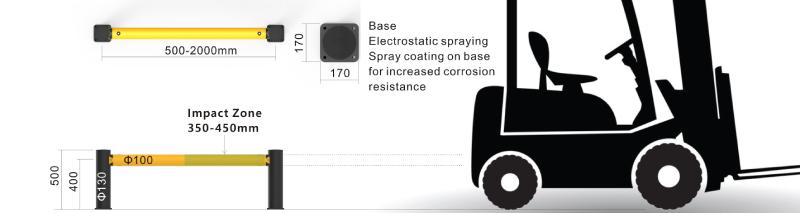

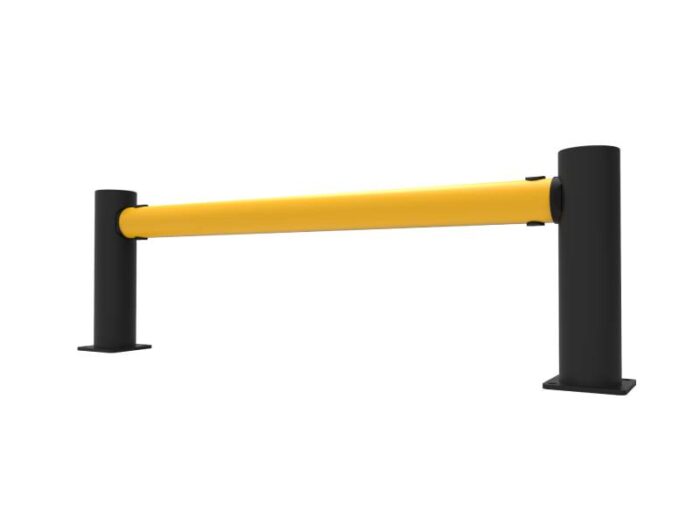

SR100 Single Traffic Guardrail

Product materials: ARMORFLEX® materials
Height: 500mm
Post diameter: 130mm
Beam diameter: 100mm
Rated working angle: 45°
45°Impact energy: 3850J
Equivalent impact energy at a rated working angle: Equivalent to a 1.5-ton vehicle impacting at the speed of 8km/h without damage

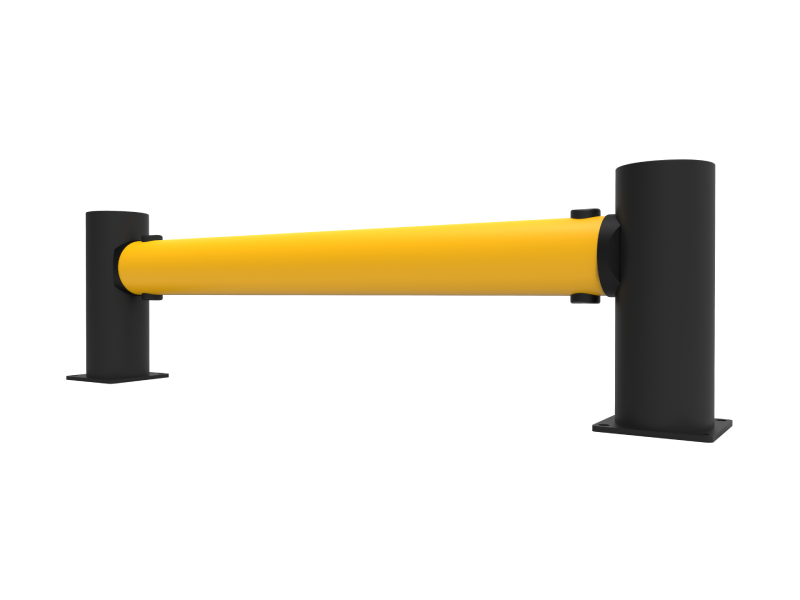

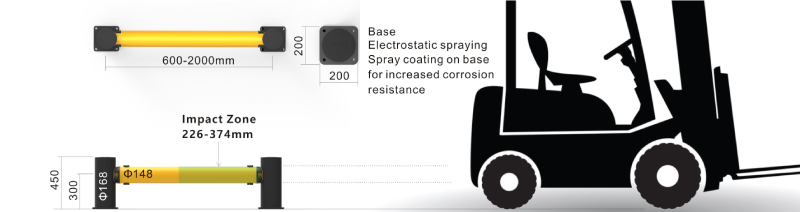

SR148 Single Traffic Guardrail

Product materials: ARMORFLEX® materials
Height: 450mm
Post diameter: 168mm
Beam diameter: 148mm
Rated working angle: 45°
45°Impact energy: 14400J
Equivalent impact energy at rated working angle: Equivalent to a 4-ton vehicle impacting at the speed of 9.6km/h without damage

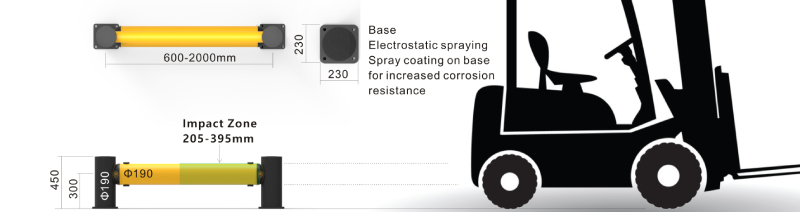

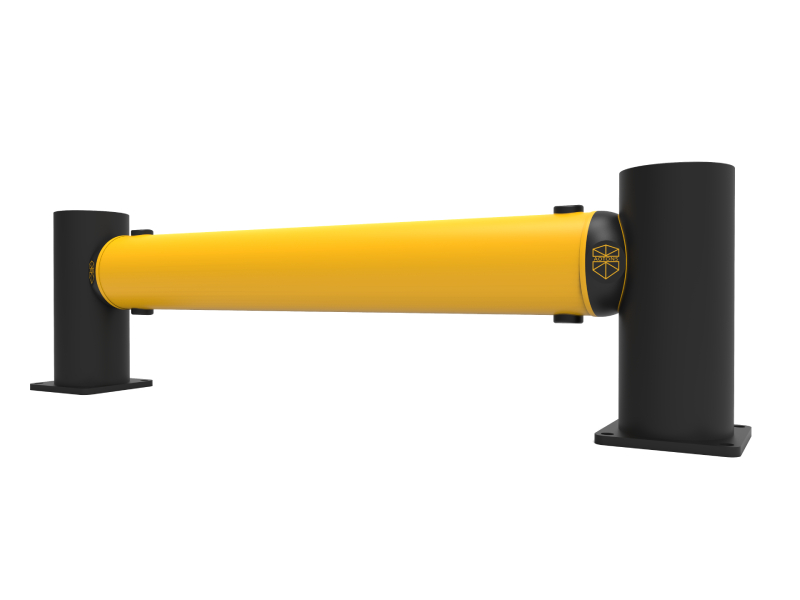

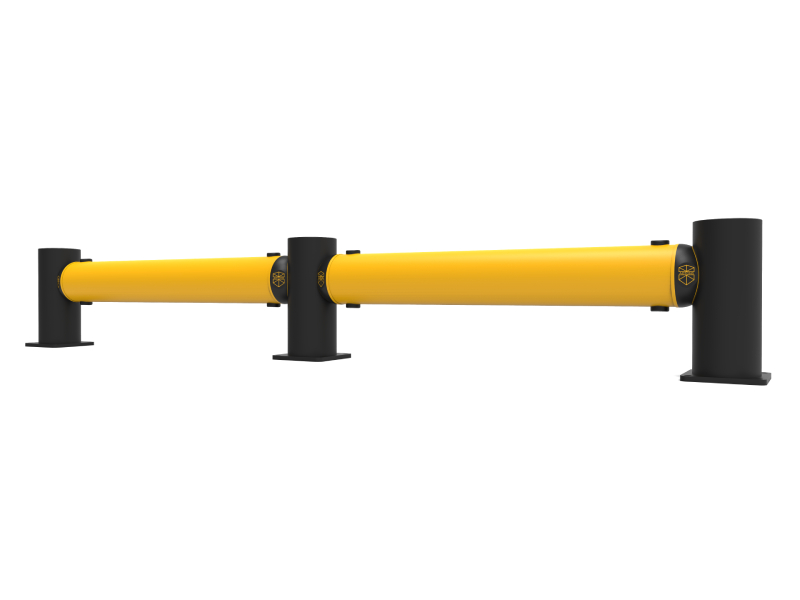

SR190 Heavy duty guardrails

Product materials: ARMORFLEX® materials
Height: 450mm
Post diameter: 190mm
Beam diameter: 190mm
Rated working angle: 45°
45°Impact energy: 21350J
Equivalent impact energy at rated working angle: Equivalent to a 6-ton vehicle impacting at the speed of 9.6km/h without damage

Note: The specific model is recommended according to the actual situation on site, and other specifications can be customized according to the actual impact energy

Material

It is made of Armorflex material, which is independently developed by Aotons. Through special nano-processing technology, the molecular structure of the material is reconstituted into a regular linear network structure.

This means that Armorflex material has recoverability and memory, can absorb, delay, and eliminate impact energy, and can rebound to its original shape after impact.

The special three-layer structure, shock absorption layer, support strengthening layer, and anti-aging layer, the material ratio and physical properties of each layer are different, and the three-layer materials are extruded by exclusive customized professional equipment at one time.
