Rack Protector

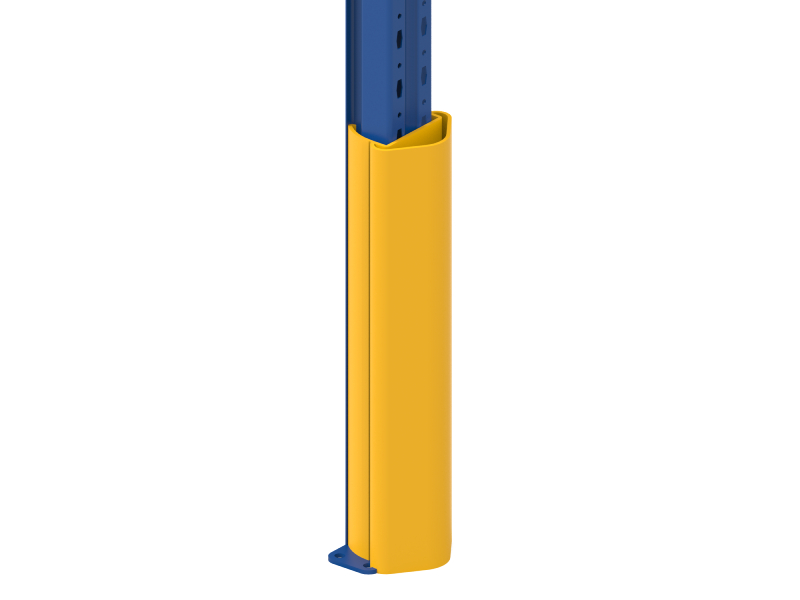

Rack Protection is a shock-absorbing protective jacket,which can be provided in different sizes to perfectly fit any shelf column.The purpose is to protect the shelf legs that are vulnerable to impact from scratch and impact caused by forklifts or moving vehicles on the front and side.

The rack protection can effectively absorb and release the impact force when it is impacted or scratched by the outside,to prevent the column from being damaged and ensure the structural integrity of the shelf system.

The special installation kit can help you with ultra-fast installation,effectively saving time and cost,and avoiding the damage to the ground caused by the installation of traditional iron corner guards.

Quick disassembly
Flexible assembly
Convenient maintenance

Add to quote

Categories: Building and Column, Racking, Wall Guards

Description
Material

Description

Aotons Rack Protector Designed to protect warehouse racks against damage caused by forklifts or pallets with goods,they prevent damage to the shelf structure,full range of polymer material protect racking system.

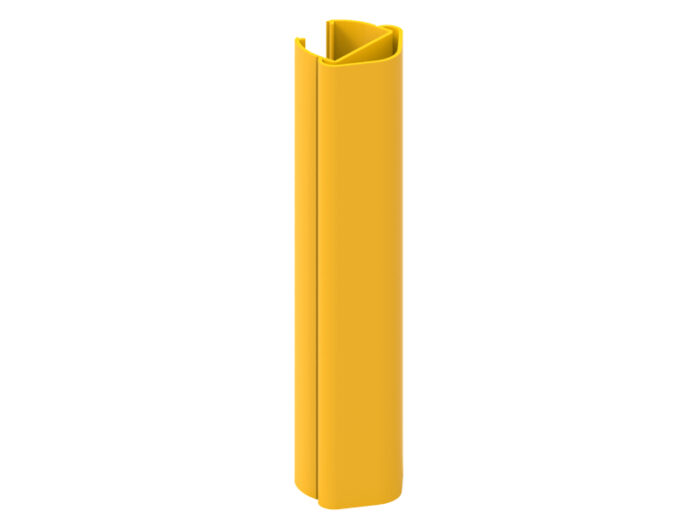

RG142 Rack Protector

Product materials: ARMORFLEX® materials
Height: 600mm
Remark:Suitable racking upright width: 80mm~100mm
Rated working angle:90°
90°Impact energy: 1000J
Equivalent impact energy at a rated working angle: Equivalent to a 3-ton vehicle impacting at the speed of 2.9km/h without damage

RG160 Rack Protector

Product materials: ARMORFLEX® materials
Height: 600mm
Remark:Suitable racking upright width: 100mm~120mm
Rated working angle:90°
90°Impact energy: 1000J
Equivalent impact energy at a rated working angle: Equivalent to a 3-ton vehicle impacting at the speed of 2.9km/h without damage

Note: The specific model is recommended according to the actual situation on site, and other specifications can be customized according to the actual impact energy

Material

Aotons rack protector is made of ARMORFLEX® material, it is independently developed by our company. Through a special nano-scale processing technology, the molecular structure of the material is reorganized into a regular linear network structure. This means that ARMORFLEX® materials are recoverable and memory-resistant, absorbing, retarding, and dissipating impact energy, and can rebound back to their original shape after impact.

A special three-layer structure – shock-absorbing and energy-absorbing layer, supporting and strengthening layer, and anti-aging layer. The material ratio and physical properties of each layer are different, and the three-layer materials are extruded at one time through exclusively developed professional equipment.
