Pedestrian Safety Barrier

Description

Aotons Pedestrian Safety Barrier Designed to protect the pedestrians . Define walk ways for people in reception or office , guides pedestrians and driver, with organize operations and prevent pedestrians from accidently into vehicle routes and unsafe area.

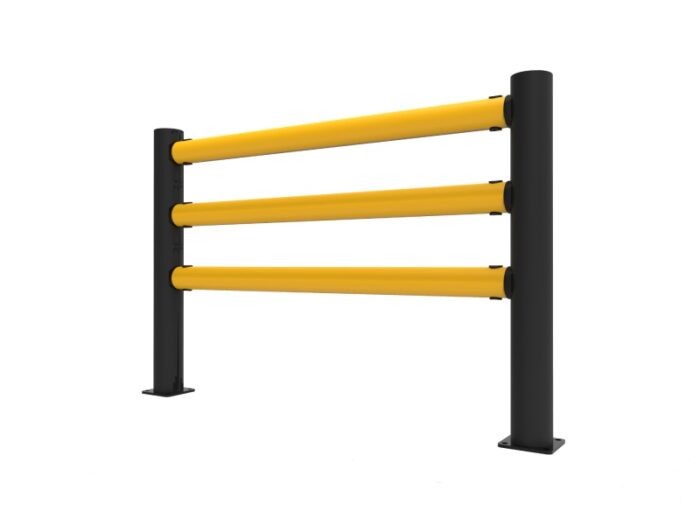

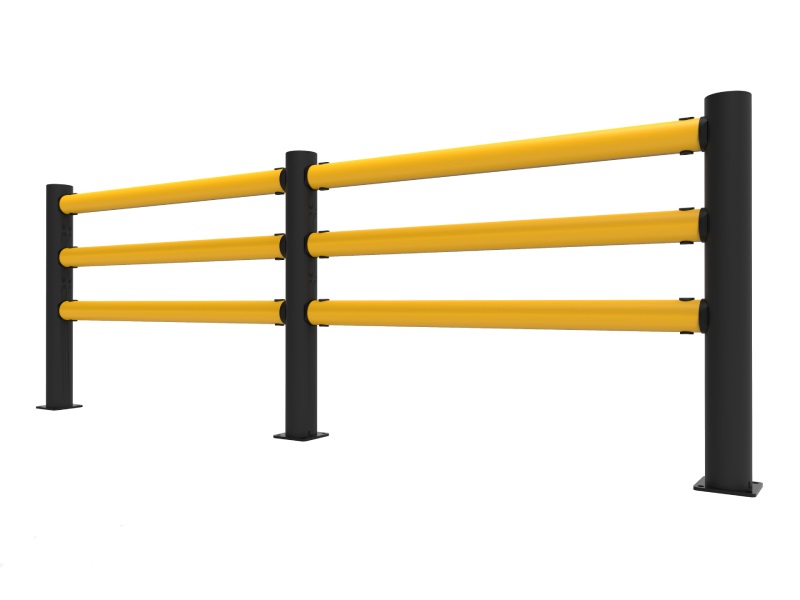

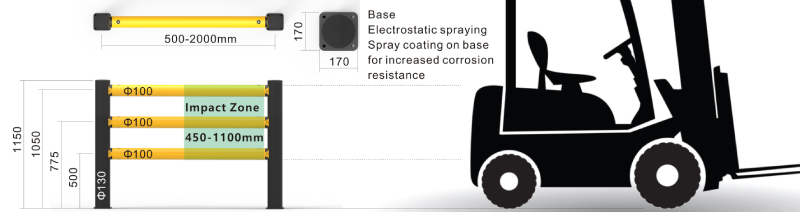

TR100 Pedestrian Safety Barrier

Product materials: ARMORFLEX® materials
Height: 1150mm
Post diameter: 130mm
Beam diameter: 100mm
Rated working angle: 45°
45°Impact energy: 8760J
Equivalent impact energy at a rated working angle: Equivalent to a 3-ton vehicle impacting at the speed of 8.4km/h without damage

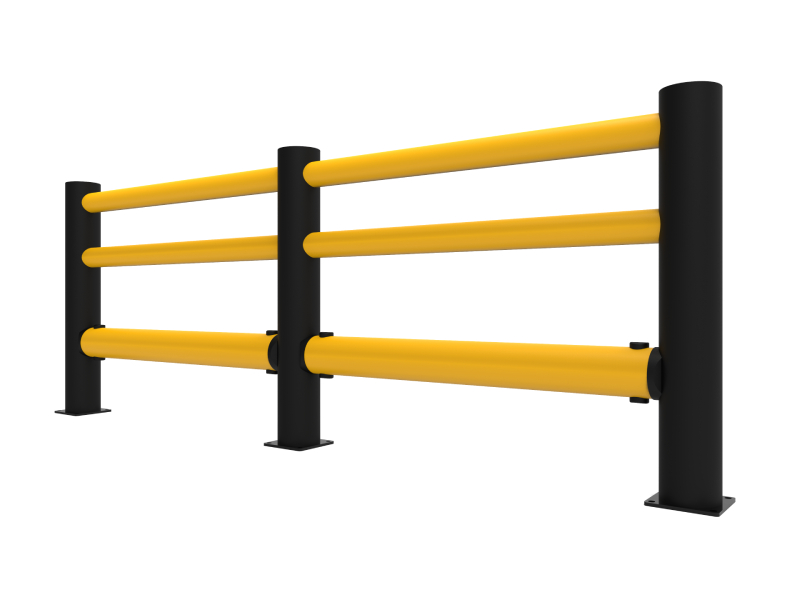

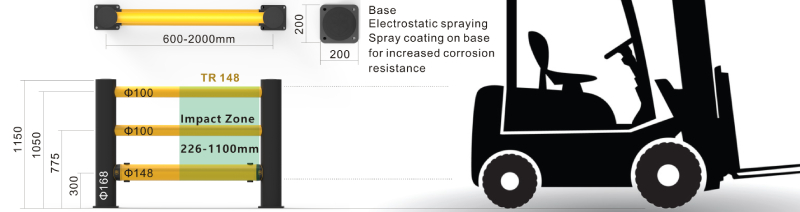

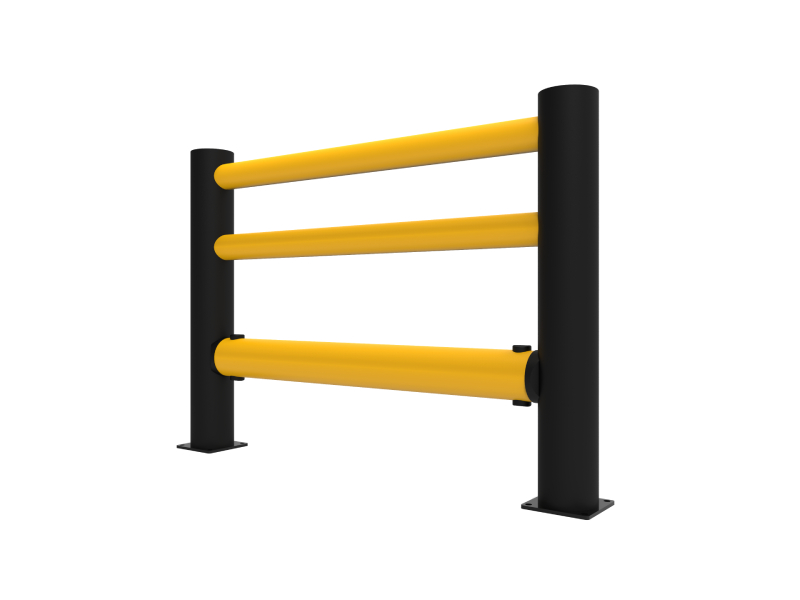

TR148 Pedestrian Safety Barrier

Product materials: ARMORFLEX® materials
Height: 1150mm
Post diameter: 168mm
Beam diameter: 148mm
Rated working angle: 45°
45°Impact energy: 14400J
Equivalent impact energy at rated working angle: Equivalent to a 4-ton vehicle impacting at the speed of 9.6km/h without damage

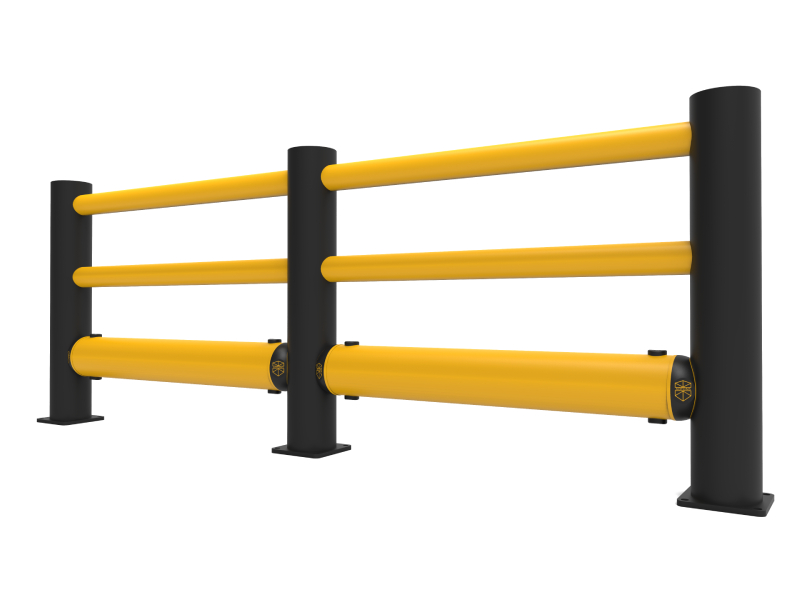

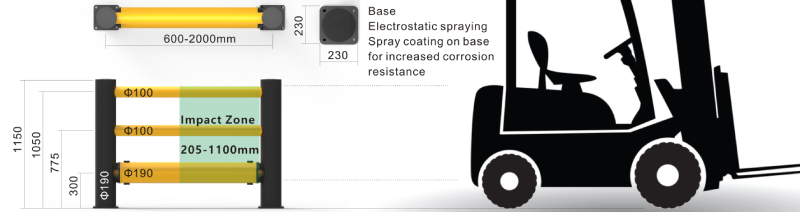

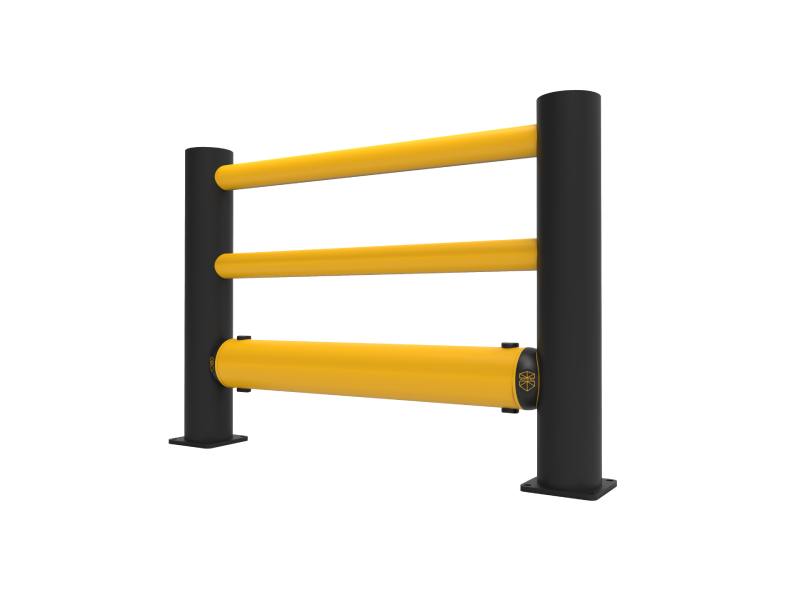

TR190 Pedestrian Safety Barrier

Product materials: ARMORFLEX® materials
Height: 1150mm
Post diameter: 190mm
Beam diameter: 190mm
Rated working angle: 45°
45°Impact energy: 21350J
Equivalent impact energy at rated working angle: Equivalent to a 6-ton vehicle impacting at the speed of 9.6km/h without damage

Note: The specific model is recommended according to the actual situation on site, and other specifications can be customized according to the actual impact energy

Material

Pedestrian safety barrier is made of Armorflex material which is independently developed by Aotons. Through special nano-processing technology, the molecular structure of the material is reconstituted into a regular linear network structure.

This means that Armorflex material has recoverability and memory, can absorb, delay, and eliminate impact energy, and can rebound to its original shape after impact.

The special three-layer structure, shock absorption layer, support strengthening layer, and anti-aging layer, the material ratio and physical properties of each layer are different, and the three-layer materials are extruded by exclusive customized professional equipment at one time.
