Loading Bay Protection

The loading bay protection is made of Armorflex material, which ensures the safety of the loading and unloading area by moving vehicles near the unattended loading and unloading area, which may slide, fall and roll.

Armorflex material was carefully selected, studied and tested by our R&D department and external bodies to achieve the parameters of excellence that distinguish it from other plastics, offering high visibility in the workplace, maximum resistance to various types of impact.

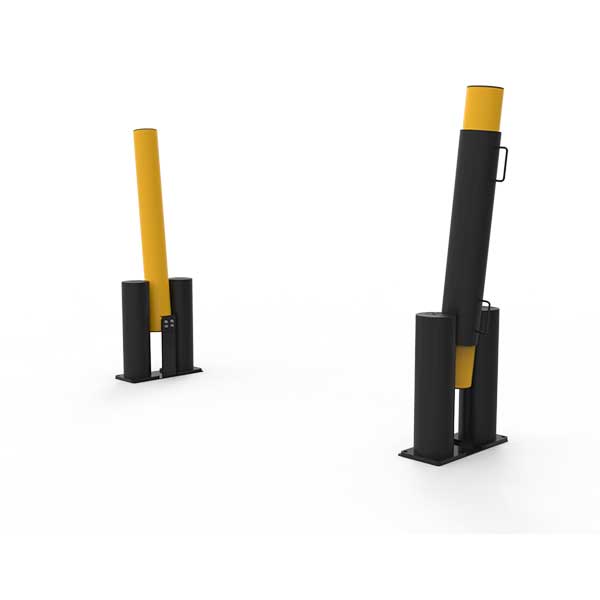

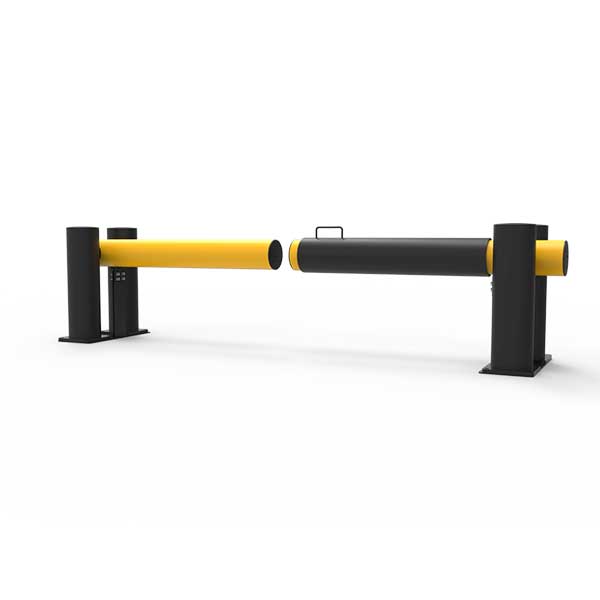

Quick disassembly
Flexible assembly
Convenient maintenance

Description

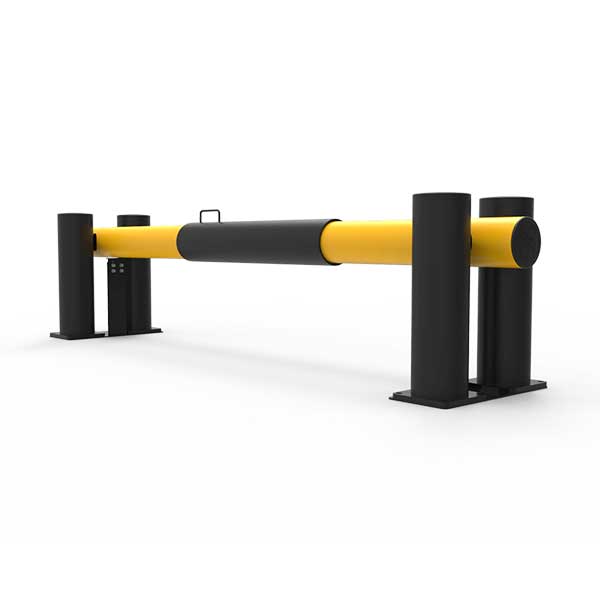

Aotons Loading Bay Protection Designed to protect employees or forklifts from falling down when loading goods into containers,keeping your employees safe and loading bays free from damage.

PSR168 Loading Bay ProtectionProduct materials: ARMORFLEX® materials
Height: 600mm
Post diameter: 168mm
Beam diameter: 168mm+190mm
Rated working angle: 90°
90°Impact energy: 12000J
Equivalent impact energy at a rated working angle: Equivalent to a 4-ton
vehicle impacting at the speed of 8.8km/h without damage

Note: The specific model is recommended according to the actual situation on site, and other specifications can be customized according to the actual impact energ

Material

It is made of Armorflex material which is independently developed by Aotons.

Through special nano-processing technology, the molecular structure of the material is reconstituted into a regular linear network structure. This means that Armorflex material has recoverability and memory, can absorb, delay, and eliminate impact energy, and can rebound to its original shape after impact.

The special three-layer structure, shock absorption layer, support strengthening layer, and anti-aging layer, the material ratio and physical properties of each layer are different, and the three-layer materials are extruded by exclusive customized professional equipment at one time.
