Double Traffic Guardrail

Description

Industrial and commercial assets often face vehicle impacts. These minor-seeming, higher-energy hits can badly damage facilities and equipment, causing high costs. The Double Traffic Guardrail is the solution. The double crossbeam design can provide a higher protection height and greater protection capabilities, and it absorbs force to reduce damage. It also guides vehicles. When installed correctly, it shows the way and stops vehicles from entering protected areas, preventing impacts. In warehouses, factories, or logistics hubs, the Double Traffic Guardrail keeps your assets safe for more efficient operations.

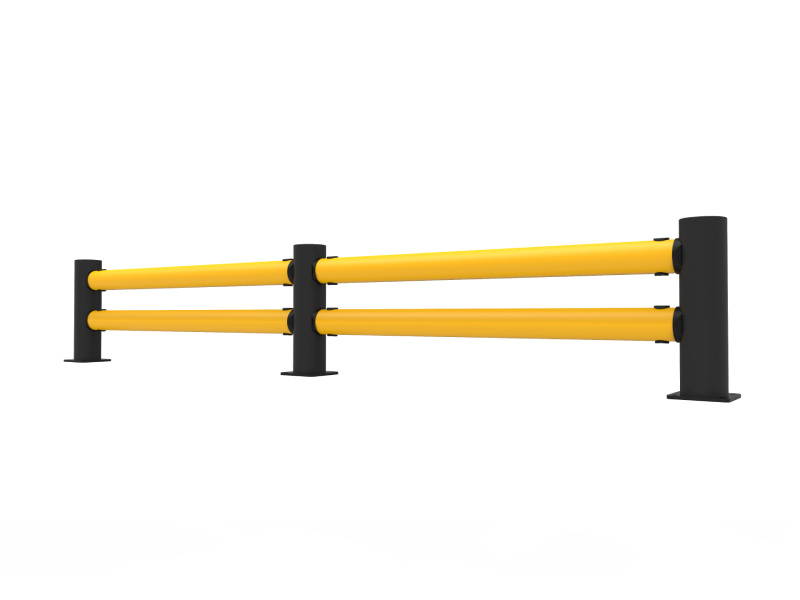

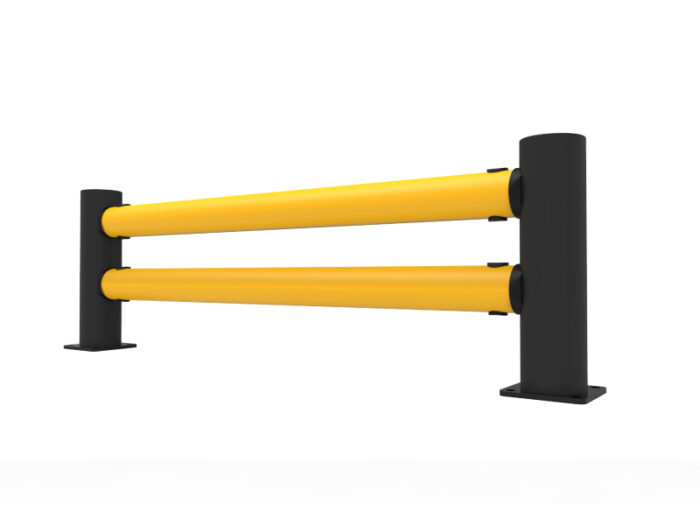

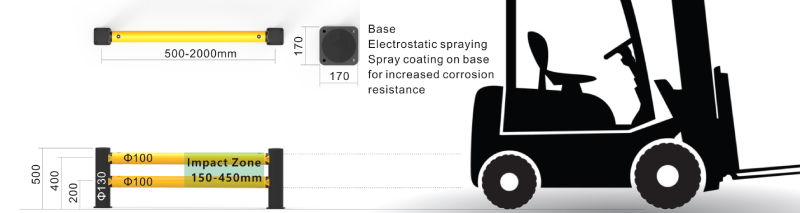

DR100 Double Traffic Guardrail

Product materials: ARMORFLEX® materials
Height: 500mm
Post diameter: 130mm
Beam diameter: 100mm
Rated working angle: 45°
45°Impact energy: 6780J
Equivalent impact energy at a rated working angle: Equivalent to a 3-ton vehicle impacting at the speed of 7.5km/h without damage

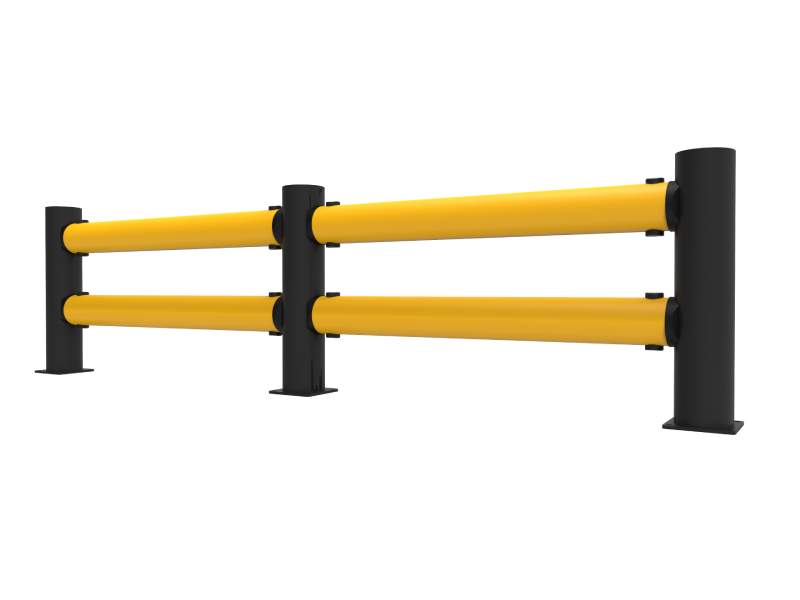

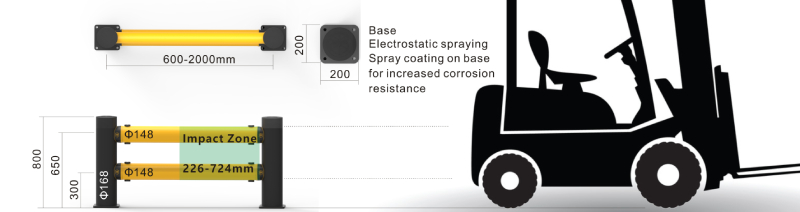

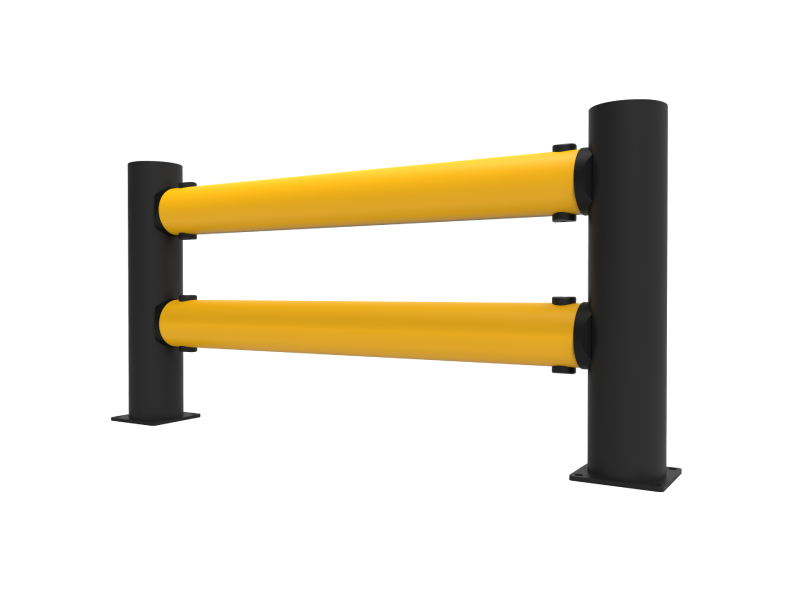

DR148 Double Traffic Guardrail

Product materials: ARMORFLEX® materials
Height: 800mm
Post diameter: 168mm
Beam diameter: 148mm
Rated working angle: 45°
45°Impact energy: 19000J
Equivalent impact energy at rated working angle: Equivalent to a 6-ton vehicle impacting at the speed of 9km/h without damage

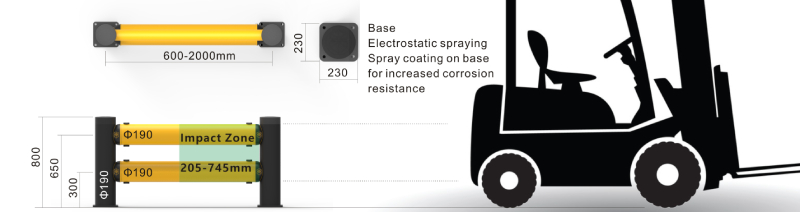

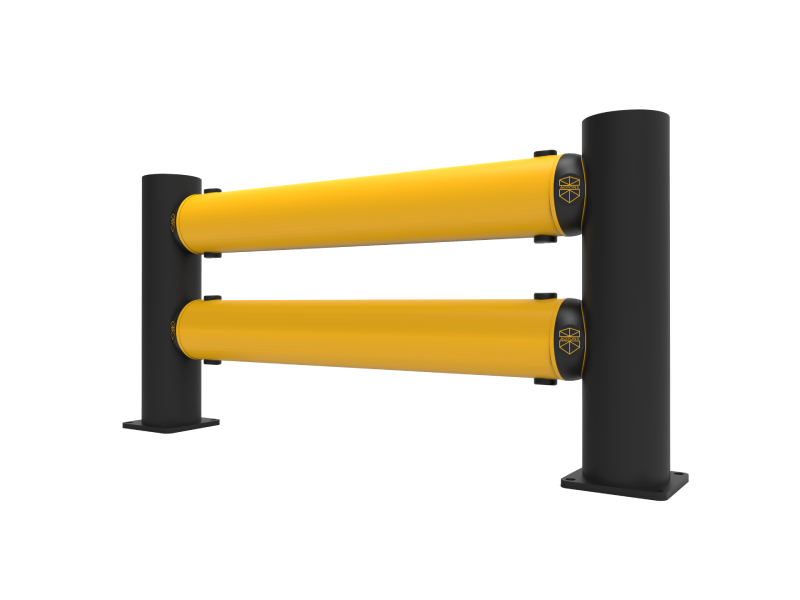

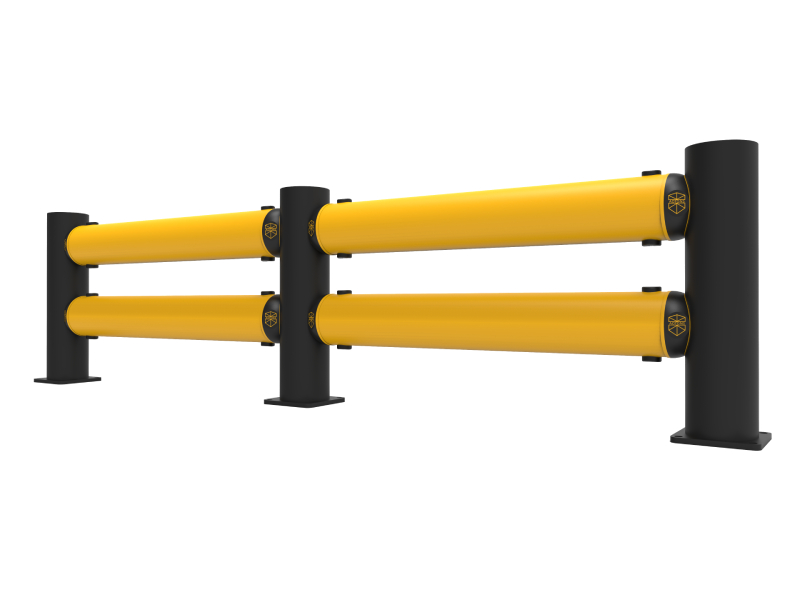

DR190 Double Heavy Duty Guardrail

Product materials: ARMORFLEX® materials
Height: 800mm
Post diameter: 190mm
Beam diameter: 190mm
Rated working angle: 45°
45°Impact energy: 21350J
Equivalent impact energy at rated working angle: Equivalent to a 6-ton vehicle impacting at the speed of 9.6km/h without damage

Note: The specific model is recommended according to the actual situation on site, and other specifications can be customized according to the actual impact energy

Material

It is made of Armorflex material, which is independently developed by Aotons. Through special nano-processing technology, the molecular structure of the material is reconstituted into a regular linear network structure.

This means that Armorflex material has recoverability and memory, can absorb, delay, and eliminate impact energy, and can rebound to its original shape after impact.

The special three-layer structure, shock absorption layer, support strengthening layer, and anti-aging layer, the material ratio and physical properties of each layer are different, and the three-layer materials are extruded by exclusive customized professional equipment at one time.
