Column Protection Barrier

In diverse building settings,columns and structures of all sizes face collision risks. Column Protection Barriers offers a solution,providing custom-made protection. Designed for any – sized structures,it’s a visible anti-collision barrier. Rails are set apart from columns to isolate and absorb impact, shielding uprights from direct hits.

Fully modular and adaptable,it offers two or three-sided units for corner or wall-adjacent columns. This flexibility suits various building layouts. Opting for Column Protection Barriers ensures reliable safety for your structures. It cuts collision losses, extends lifespan,and ensures worry-free building operations.

Quick disassembly
Flexible assembly
Convenient maintenance

Add to quote

Categories: Building and Column, Column Guards, Uncategorized

Description
Material

Description

Aotons Column Protection Barrier Designed to protect columns,building supports and any size and shape,provides 360° protection for columns,if without protection may cause serious structural or infrastructure damage.Column protection can be installed at different heights and rails, product dimensions also can be customized depend on site request.

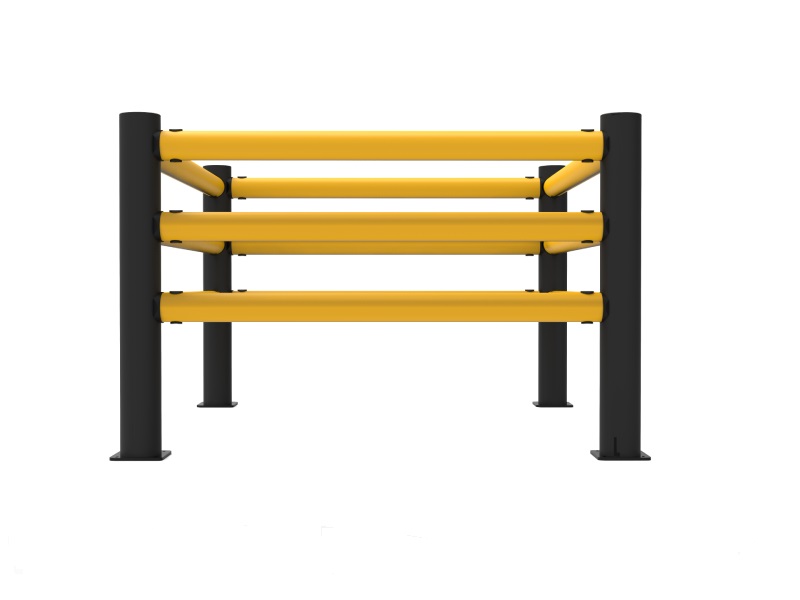

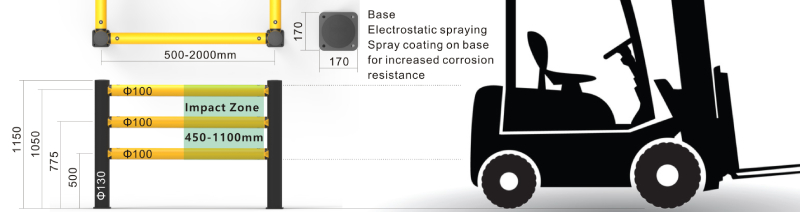

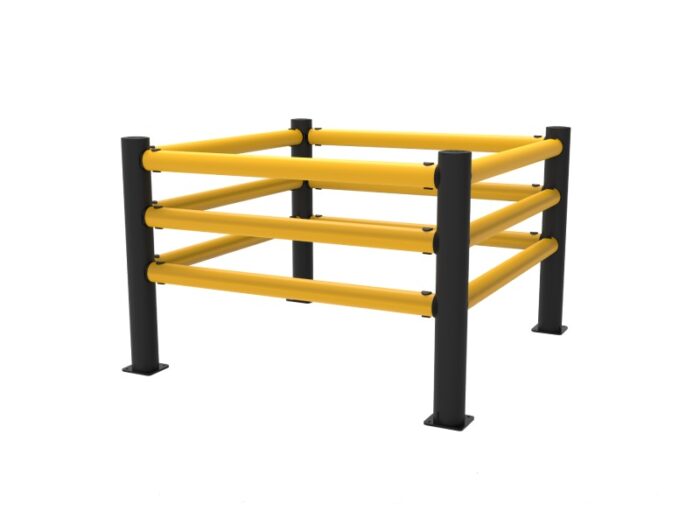

CTR100 Column Protection Barrier

Product materials: ARMORFLEX® materials
Height: 1150mm
Post diameter: 130mm
Beam diameter: 100mm
Rated working angle: 45°
45°Impact energy: 8760J
Equivalent impact energy at a rated working angle: Equivalent to a 3-ton vehicle impacting at the speed of 8.4km/h without damage

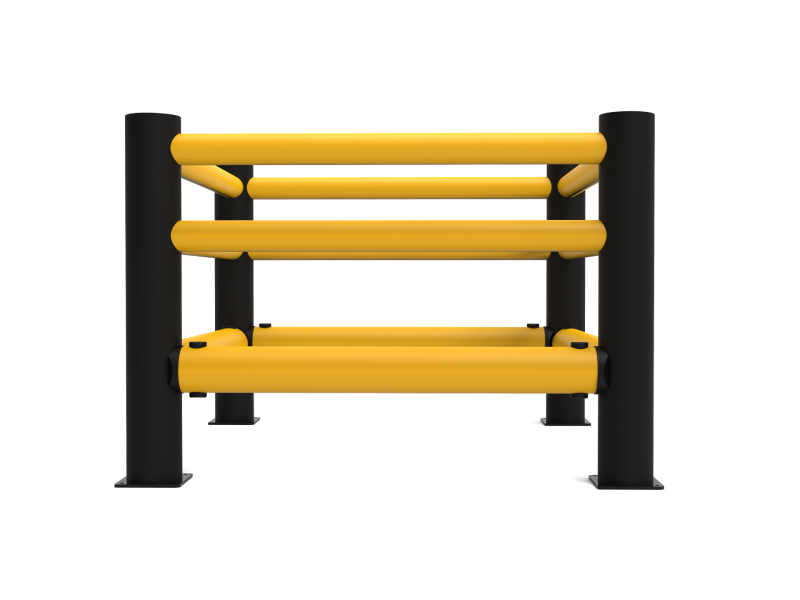

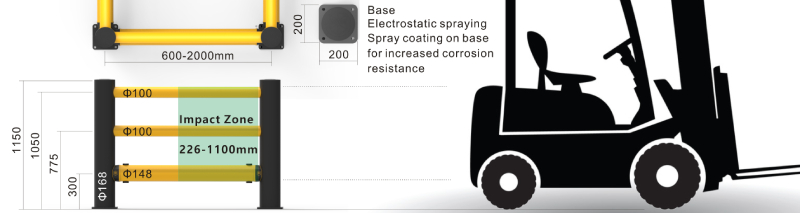

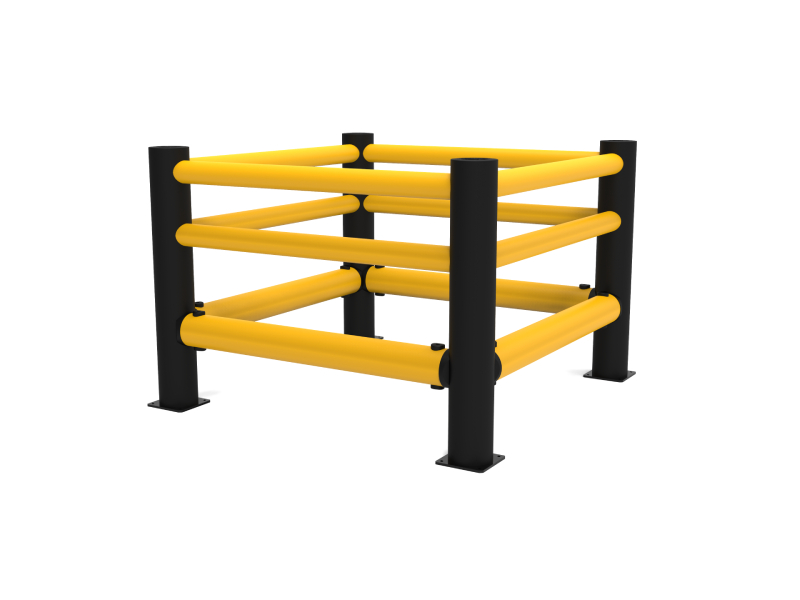

CTR148 Column Protection Barrier

Product materials: ARMORFLEX® materials
Height: 1150mm
Post diameter: 168mm
Beam diameter: 148mm*1+100mm*2
Rated working angle: 45°
45°Impact energy: 14400J
Equivalent impact energy at rated working angle: Equivalent to a 4-ton vehicle impacting at the speed of 9.6km/h without damage

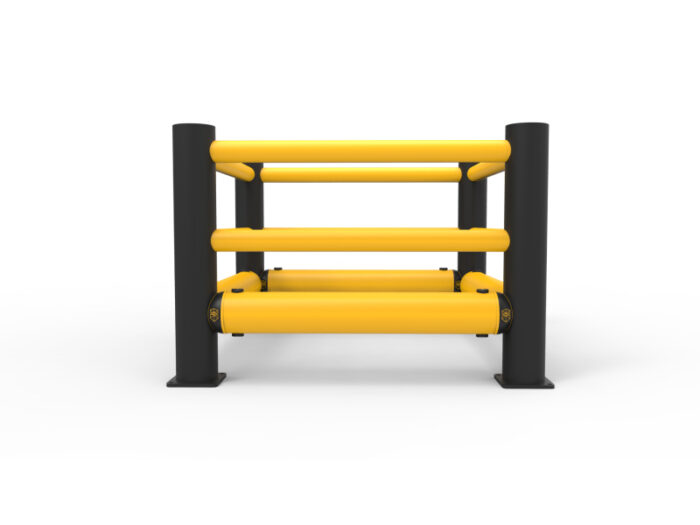

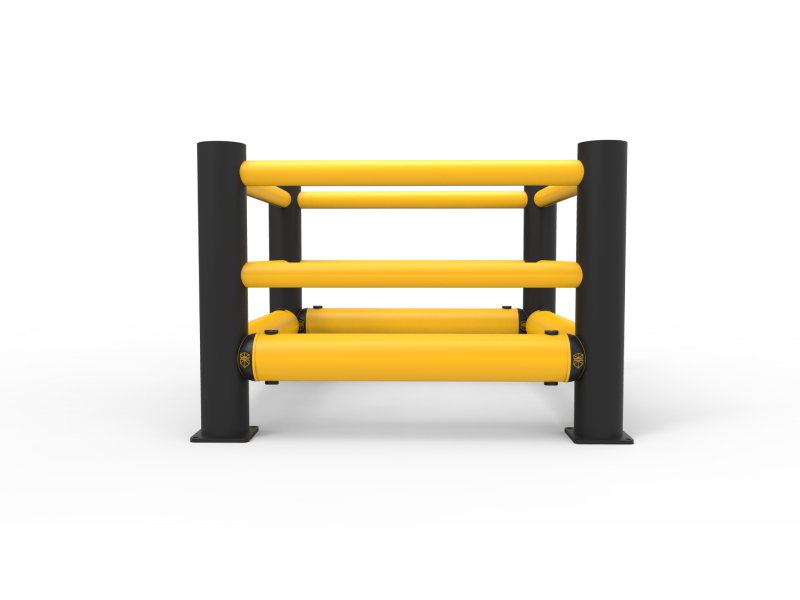

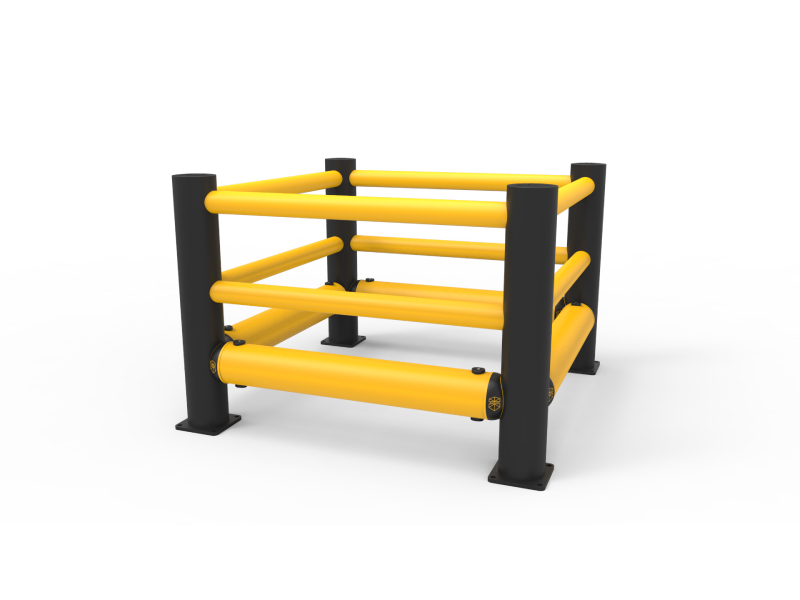

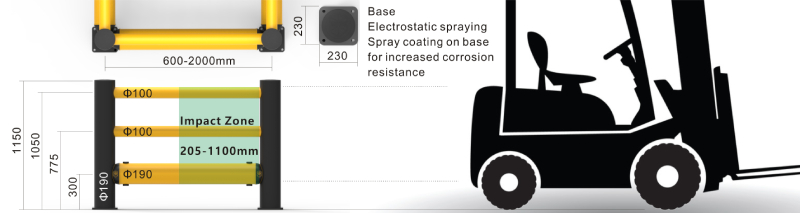

CTR190 Column Protection Barrier

Product materials: ARMORFLEX® materials
Height: 1150mm
Post diameter: 190mm
Beam diameter: 190mm*1+100mm*2
Rated working angle: 45°
45°Impact energy: 21350J
Equivalent impact energy at rated working angle: Equivalent to a 6-ton vehicle impacting at the speed of 9.6km/h without damage

Note: The specific model is recommended according to the actual situation on site, and other specifications can be customized according to the actual impact energy

Material

Column Protection Barriers is made of Armorflex material which is independently developed by Aotons. Through special nano-processing technology, the molecular structure of the material is reconstituted into a regular linear network structure.

This means that Armorflex material has recoverability and memory, can absorb, delay, and eliminate impact energy, and can rebound to its original shape after impact.

The special three-layer structure, shock absorption layer, support strengthening layer, and anti-aging layer, the material ratio and physical properties of each layer are different, and the three-layer materials are extruded by exclusive customized professional equipment at one time.
