Bollard

The protective bollard is made of Armorflex material, which is used to protect the door or protruding corner from the accidental impact of forklifts and other moving vehicles.

Armorflex material was carefully selected, studied, and tested by our R&D department and external bodies to achieve the parameters of excellence that distinguish it from other plastics, offering high visibility in the workplace, and maximum resistance to various types of impact.

The impact-resistant bollards are applicable to the collision barrier of the plant entrance and exit, door frame, wall corner, water pipe, and support column.

Quick disassembly
Flexible assembly
Convenient maintenance

Add to quote

Categories: Asset Protection, Building and Column, Pedestrian Protection, Service Yard & Dock Protection, Uncategorized

Description
Material

Description

Aotons safety bollard, designed to protect various industrial places, can provide reliable protection for strategic, vulnerable locations such as entrance gates, access ways, corners, machinery, structural columns, electrical switchgear, and building facades. Strong and durable,the yellow color is highly visible to driver’s attention to safe driving. The type of bollard is matched to the vulnerability of the location, and to the weight and speed of moving vehicles.

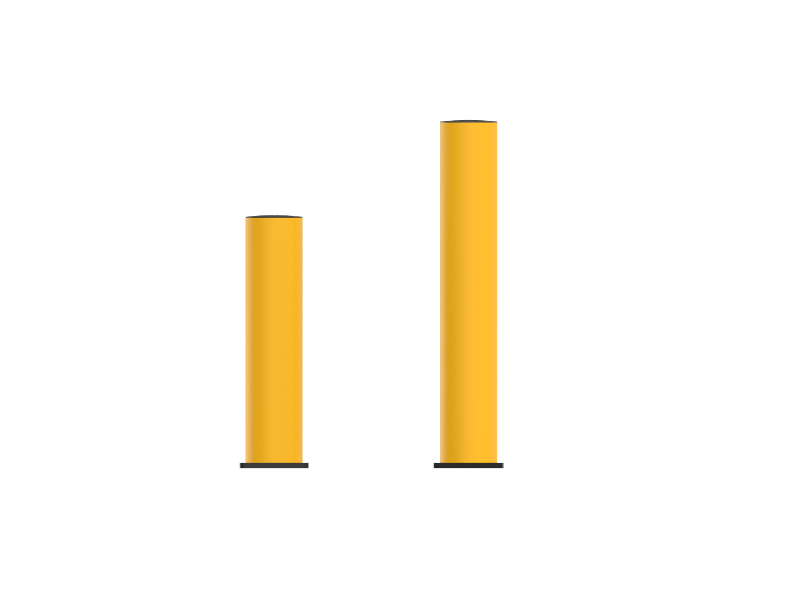

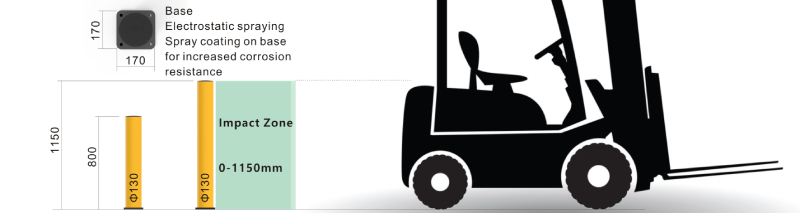

BO130 Bollard

Product materials: ARMORFLEX® materials
Height: 800/1150mm
Post diameter: 130mm
Rated working angle: 90°
90°Impact energy: 3000J
Equivalent impact energy at a rated working angle: Equivalent to a 1.5-ton vehicle impacting at the speed of 7.2km/h without damage

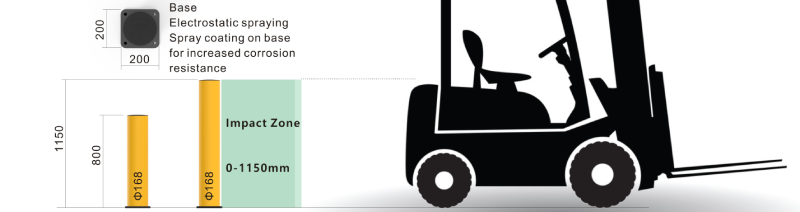

BO168 Bollard

Product materials: ARMORFLEX® materials
Height: 800/1150mm
Post diameter: 168mm
Rated working angle: 90°
90°Impact energy: 3600J
Equivalent impact energy at rated working angle: Equivalent to a 3-ton vehicle impacting at the speed of 5.6km/h without damage

BO190 Bollard

Product materials: ARMORFLEX® materials
Height: 800/1150mm
Post diameter: 190mm
Rated working angle: 90°
90°Impact energy: 6900J
Equivalent impact energy at rated working angle: Equivalent to a 6-ton vehicle impacting at the speed of 5.5km/h without damage

Note: The specific model is recommended according to the actual situation on site, and other specifications can be customized according to the actual impact energy

Material

It is made of Armorflex material, which is independently developed by Aotons. Through special nano-processing technology, the molecular structure of the material is reconstituted into a regular linear network structure. This means that Armorflex material has recoverability and memory, can absorb, delay, and eliminate impact energy, and can rebound to its original shape after impact.

The special three-layer structure, shock absorption layer, support strengthening layer, and anti-aging layer, the material ratio and physical properties of each layer are different, and the three-layer materials are extruded by exclusive customized professional equipment at one time.
